15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel
Description Of AUO LCD Panel
Now have 2 datasheets of G156HAB01.0 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Final Ver1.0 which was released out on 1 18 2019, G156HAB01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
AUO G156HAB01.0 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)  | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156HAB01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] |
| Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 361(W)×227(H) mm |
| Bezel Opening | - | Overall Depth | 4.9 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Touchscreen : | TP Controller | With touch controller | TP Interface | USB |
| Touch Points | 10 points | TP Technology | On-Cell Touch |
| Fixation : | Without |
| Other Detail : | Mass | 620g (Max.) | Surface | Hard coating (7H) |
| Panel Cover | With Cover Lens |
We also have other industrial LCD panels, pls contact to us for the further information
| H546DAN01.5 | AUO | 5.5" |
| H546DAN08.0 | AUO | 5.5" |
| B080XAN03.5 | AUO | 7.9" |
| B080XAN03.2 | AUO | 7.9" |
| H499TAN05.0 | AUO | 5.0" |
| H520DAN01.1 | AUO | 5.2" |
| B116XAN05.0 CELL | AUO | 11.6" |
| H495TAN01.0 | AUO | 5.0" |
| H598QAN02.1 | AUO | 6.0" |
| M185XTN01.2 CELL | AUO | 18.5" |
| H598QAN01.0 | AUO | 6.0" |
| T430HVN01.2 CELL | AUO | 43" |
| H495TAN01.2 | AUO | 5.0" |
| T650QVN04.5 CELL | AUO | 65" |
| M320DVN01.0 CELL | AUO | 32.0" |
| M238HVN01.0 CELL | AUO | 23.8" |
| M238HVN01.2 CELL | AUO | 23.8" |
| T320XVN02.F CELL | AUO | 31.5" |
Application Of AUO LCD Panel G156HAB01.0
1. Military Display
2. Medical Display
3. Intelligent Display
4. Industrial Display
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Product Tags:
|
|

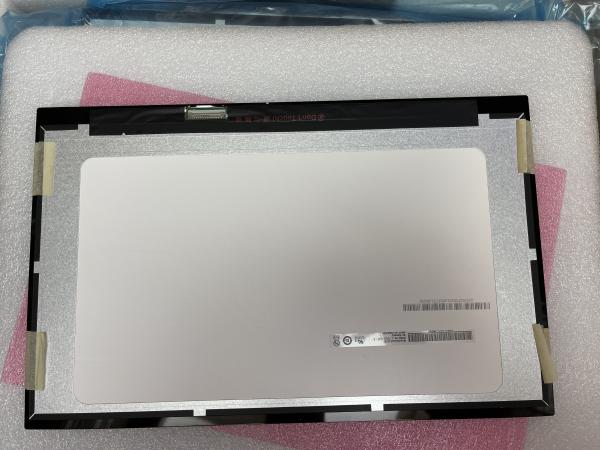

15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel Images
|
