21.5 Inch INNOLUX TFT LCD Screen Module High Brightness M215HGE-L10

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

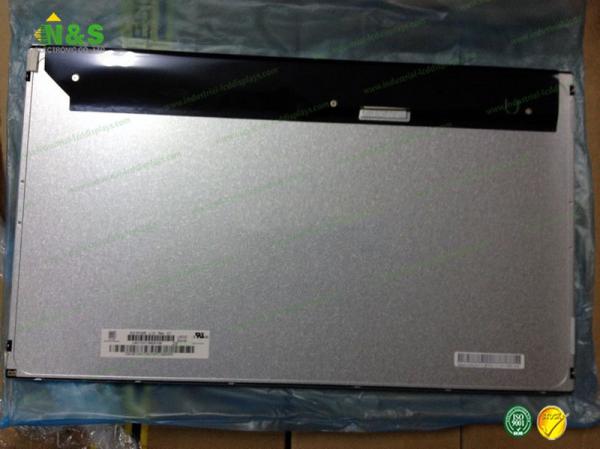

21.5 Inch INNOLUX TFT LCD Screen Module High Brightness M215HGE-L10

Brand Name : INNOLUX

Model Number : M215HGE-L10

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD

Panel Size : 21.5 inch

Resolution : 1920×1080

Contrast Ratio : 1000:1 (Typ.)

Outline : 495.6×292.2×12 mm

Contact Now

Normally White M215HGE-L10 TFT LCD Module INNOLUX 21.5 inch Surface Antiglare (Haze 25%), Hard coating (3H)


Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

M215HGE-L10 Basic Information

Panel Model M215HGE-L10
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,21.5 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks TC0’5.0 Compliance

M215HGE-L10 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 102 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.08275×0.24825 mm (H×V)
Pixel Pitch 0.24825×0.24825 mm (H×V)
Weight 2.04/2.12Kgs (Typ./Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 476.64×268.11 mm (H×V)
Bezel Area 479.8×271.3 mm (H×V)
Outline Dimension 495.6×292.2 mm (H×V)
Outline Depth 11.5/12.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

M215HGE-L10 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.43 (Max.)(9 points)
Sunlight Readable N

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V236BJ1-P03 Innolux 23.6" 1366×768
PH035NA-01B Innolux 3.5" 320×480
PH040NA-01B Innolux 4.0" 480×800
PH045NA-01A Innolux 4.5" 480×854
PH045NA-01B Innolux 4.5" 480×854
PB050IA-01A Innolux 5.0" 540×960
ZE065NA-01B Innolux 6.5" 800×480
ZE050NA-08D Innolux 5.0" 640×480
N070ICN-PB1 Innolux 7.0" 800×1280
N156BGE-P41 Innolux 15.6" 1366×768
V500HJ1-PE8 Innolux 50" 1920×1080
V400HJ6-PE1 Innolux 40" 1920×1080

Pls contact to us for more stock information: salespm@nselectronic.com.hk
